Strike First ABC Fire Extinguisher

Strike First ABC Fire Extinguisher

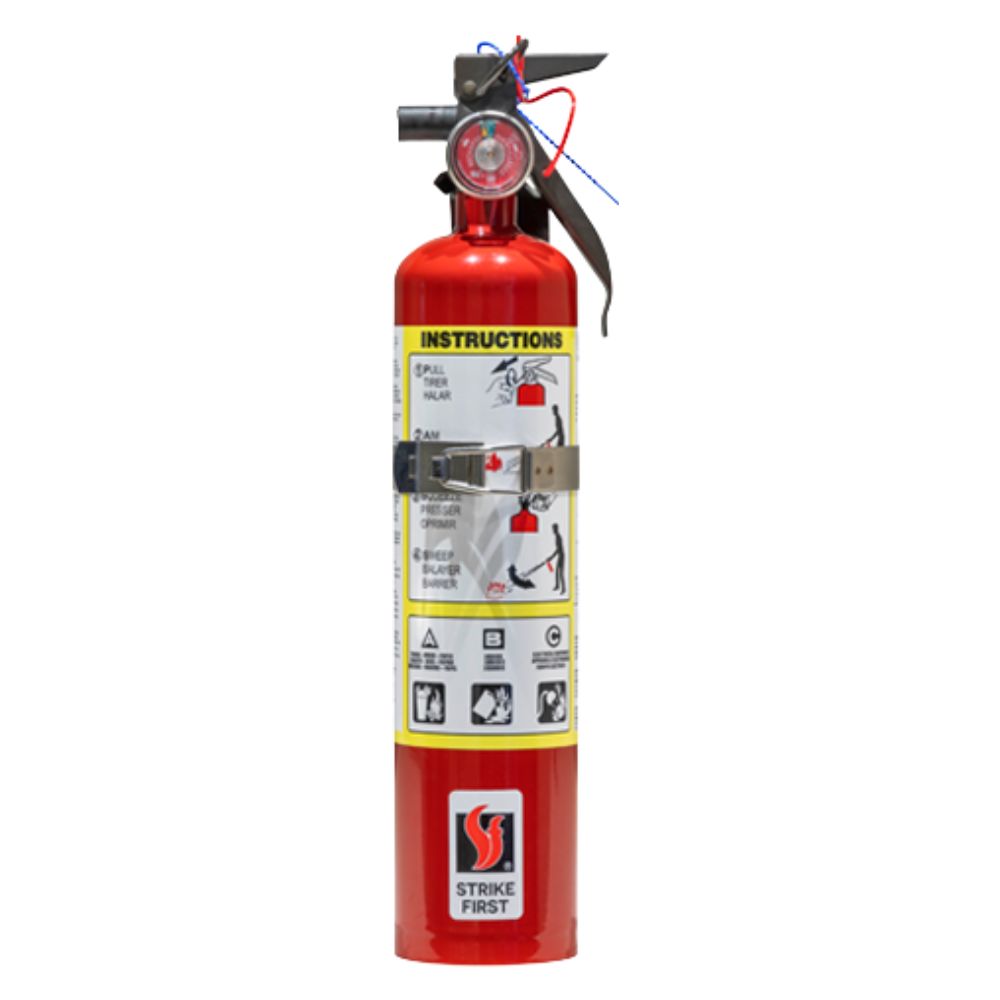

2.5LB

Approval
Model	SF-ABC110ST
Capacity	2.5 lbs. (1.13 kgs.)
UL/ULC Rating	1-A : 10-B:C
*U.S.C.G. Approval	Type B:C Size I
Range	8 - 10 ft (2.5 - 3 m)
Temperature Range	-65°F to 120°F (-54°C to 49°C)
Discharge Time	9 sec.
PSI	150
Height	15 1/4" (39 cm)
Width	3 3/4" (9.5 cm)
Diameter	3 1/8" (8 cm)
Weight	4 1/2 lbs. (2 kgs.)

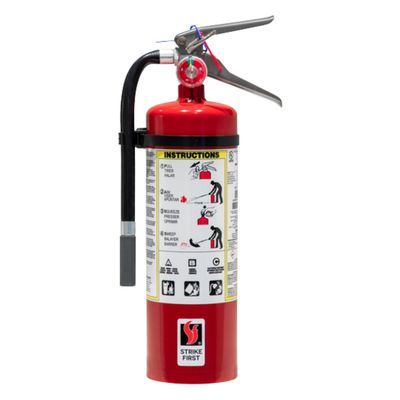

5LB

Approval
Model	SF-ABC310
Capacity	5lb
UL/ULC Rating	3-A : 10-B : C
*U.S.C.G. Approval	Type A Size II, Type B:C Size I
Range	8 - 10 ft (2.5 - 3 m)
Temperature Range	-65°F to 120°F (-54°C to 49°C)
Discharge Time	14.5 sec.
PSI	195
Height	15 1/4" (39 cm)
Width	6 3/4" (17 cm)
Diameter	4 1/4" (11 cm)
Weight	10 1/2 lbs. (4.8 kgs.)

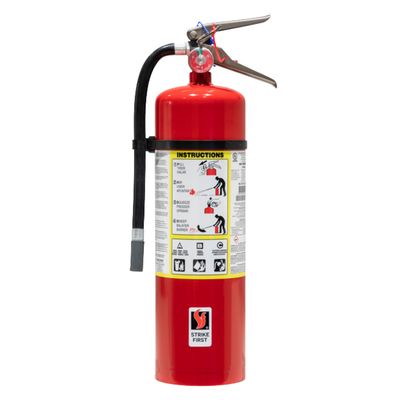

10LB

Specifications
Approval
Model	SF-ABC680
Capacity	10 lbs.
UL/ULC Rating	6-A : 80-B : C
*U.S.C.G. Approval	Type A Size II, Type B:C Size II
Range	10 - 15 ft (3 - 4.5 m)
Temperature Range	-65°F to 120°F (-54°C to 49°C)
Discharge Time	21 sec.
PSI	235
Height	21 1/4" (54 cm)
Width	8" (20.3 cm)
Diameter	5 1/8" (13 cm)
Weight	19 1/4 lbs. (8.8 kgs.)

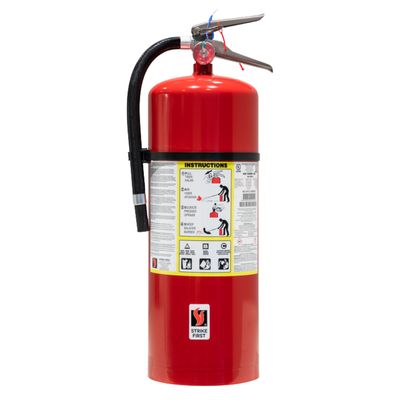

20LB

Approval
Model	SF-ABC1020
Capacity	20 lbs.
UL/ULC Rating	10-A : 120-B : C
*U.S.C.G. Approval	Type A Size II, Type B:C Size III
Range	10 - 15 ft (3 - 4.5 m)
Temperature Range	-54°C to 49°C (-65°F to 120°F)
Discharge Time	28 sec.
PSI	235
Height	24" (61 cm)
Width	9 1/2" (24 cm)
Diameter	7 1/8" (18 cm)
Weight	35 1/4 lb (16.1 kg)

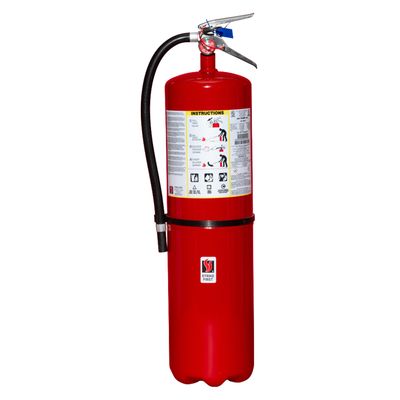

30LB

Approval
Model	SF-ABC30
Capacity	30 lbs.
UL/ULC Rating	10-A : 120-B : C
*U.S.C.G. Approval	Type A Size II, Type B:C Size IV
Range	10 - 15 ft (3 - 4.5 m)
Temperature Range	-65°F to 120°F (-54°C to 49°C)
Discharge Time	28 sec.
PSI	195
Height	30 3/4" (78 cm)
Width	9 1/2" (24 cm)
Diameter	7 1/8" (18 cm)
Weight	50 1/3 lbs. (22.8 kgs.)
